The evolution of ball bearing technology represents a remarkable journey from basic mechanical components to sophisticated engineering solutions. Among the most significant advances in recent decades is the emergence of hybrid ceramic ball bearings, which combines the proven reliability of steel races with the exceptional properties of ceramic rolling elements. This revolutionary technology has transformed performance standards across industries, offering unprecedented levels of durability, speed capability, and operational efficiency.

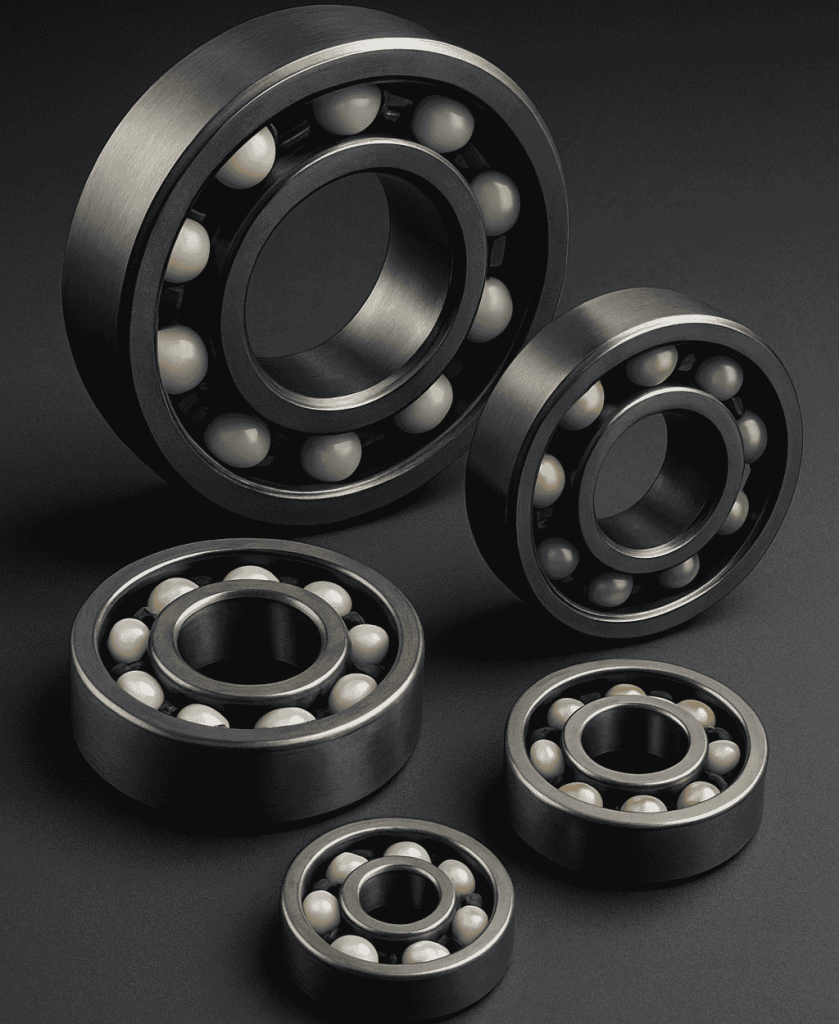

Hybrid ceramic technology integrates silicon nitride ceramic balls with steel inner and outer races, creating bearings that deliver superior performance compared to traditional all-steel alternatives. These advanced bearings operate at speeds up to 50% higher than conventional steel bearings while generating significantly less friction and heat. The ceramic balls are 60% lighter than steel counterparts, reducing centrifugal forces and enabling higher rotational speeds without compromising reliability.
The industrial significance of this technology extends beyond simple performance improvements. Hybrid ceramic bearings offer three to five times longer operational life compared to steel bearings, dramatically reducing maintenance requirements and operational downtime. Their exceptional resistance to corrosion, electrical insulation properties, and ability to perform under extreme temperature conditions make them invaluable in demanding applications across aerospace, automotive, industrial machinery, and high-speed manufacturing sectors.
Understanding Hybrid Ceramic Ball Bearing Technology
Material Composition and Structure
Hybrid ceramic ball bearings represent an innovative engineering approach that combines the best characteristics of both ceramic and steel materials. The fundamental design features ceramic rolling elements, typically manufactured from silicon nitride (Si3N4) or zirconia (ZrO2), enclosed within traditional steel races. This hybrid configuration maximizes the advantages of both materials while minimizing their individual limitations.
Silicon nitride ceramic balls offer exceptional mechanical properties including lower thermal expansion, high rigidity, and superior wear resistance compared to steel. The density of silicon nitride is approximately 60% lower than steel, which dramatically reduces centrifugal forces during high-speed rotation. This weight reduction enables bearings to achieve operational speeds that would cause excessive stress and premature failure in conventional steel bearings.
The ceramic balls undergo precision manufacturing to achieve extremely high dimensional accuracy, with super high precision equivalent to G1 grade available, exceeding ISO Grade 3 specifications. This level of precision ensures optimal load distribution and minimizes vibration during operation, contributing to the smooth performance characteristics that distinguish hybrid ceramic bearings.
Manufacturing Process and Quality Control
The production of hybrid ceramic bearings involves sophisticated manufacturing techniques that ensure consistent quality and performance. Ceramic balls are produced through gas pressure sintering processes that create pore-free microstructures, providing high strength, fracture toughness, and contact fatigue resistance. The steel races undergo precision machining and heat treatment to achieve optimal hardness and surface finish characteristics.
Modern manufacturing employs advanced technologies including artificial intelligence and automated quality control systems to enhance precision and reduce manufacturing variability. These AI-powered systems enable real-time monitoring of production parameters, predictive quality analysis, and optimization of manufacturing processes, resulting in bearings that consistently meet demanding performance specifications.
Quality assurance protocols include comprehensive dimensional inspection, surface finish verification, and performance testing under simulated operating conditions. Each bearing undergoes rigorous testing to verify rotational accuracy, friction torque levels, and noise characteristics before approval for distribution.
Performance Advantages Over Conventional Bearings
Hybrid ceramic bearings deliver measurable performance improvements across multiple operational parameters. Speed capability represents one of the most significant advantages, with these bearings operating at rotational speeds up to 1.5 million DN (diameter × RPM) compared to approximately 1.0 million DN for steel bearings. This enhanced speed capability stems from reduced centrifugal forces and improved thermal stability.
Friction reduction constitutes another critical advantage, with ceramic balls generating up to 40% less friction than steel alternatives. This reduction translates directly into energy savings, reduced heat generation, and extended bearing life. Lower friction also enables operation with minimal lubrication, making hybrid ceramic bearings suitable for applications where traditional lubrication methods are impractical.
The wear resistance of ceramic materials provides exceptional durability advantages. Ceramic balls are typically three to five times harder than steel balls, enabling them to withstand greater contact stresses without deformation. This hardness advantage, combined with the tribochemically inert properties of ceramic materials, significantly reduces adhesive wear that commonly occurs in steel-on-steel contact scenarios.
Applications Across High-Performance Industries
Aerospace and Defense Applications
The aerospace industry represents one of the most demanding environments for bearing technology, where performance, reliability, and weight reduction are critical factors. Hybrid ceramic bearings have become integral components in jet engines, aircraft control systems, and precision instruments due to their exceptional high-temperature performance and resistance to extreme operating conditions.
In jet engine applications, these bearings operate under intense heat and pressure conditions that would rapidly degrade conventional steel bearings. The thermal stability of silicon nitride ceramic balls enables operation at temperatures exceeding 1,200°C while maintaining structural integrity. This capability allows aircraft engines to operate more efficiently and with extended maintenance intervals.
Defense applications benefit from the non-magnetic and electrically insulating properties of ceramic materials. Hybrid ceramic bearings do not interfere with magnetic navigation systems or electronic equipment, making them essential for precision military applications including missile guidance systems and radar equipment.
Automotive and Electric Vehicle Integration
The automotive sector has increasingly adopted hybrid ceramic bearing technology, particularly in high-performance and electric vehicle applications. Electric motors operate at significantly higher rotational speeds than internal combustion engines, requiring bearings capable of sustained high-speed operation without excessive heat generation.
In electric vehicle applications, the reduced friction characteristics of ceramic bearings contribute directly to increased driving range by improving overall system efficiency.
Performance automotive applications utilize hybrid ceramic bearings in gearbox assemblies and engine components where reduced weight and friction deliver measurable improvements in acceleration and fuel efficiency. Racing applications particularly benefit from the rapid acceleration capabilities enabled by lighter, more efficient bearing systems.
Industrial Machinery and Manufacturing
Manufacturing environments present diverse challenges including contamination exposure, variable operating conditions, and the need for extended operational periods without maintenance. Hybrid ceramic bearings address these requirements through superior contamination resistance and extended service life characteristics.
High-speed machining applications, including CNC equipment and precision manufacturing tools, utilize hybrid ceramic bearings to achieve the rotational speeds and accuracy required for modern manufacturing processes. The low-friction characteristics prevent heat buildup that could affect machining precision, while the extended service life reduces production interruptions for bearing replacement.
Industrial pump and compressor applications benefit from corrosion resistance and ability to operate under harsh environmental conditions. Ceramic balls resist chemical attack and maintain performance characteristics in contaminated environments where steel bearings would experience rapid degradation.
Medical Equipment and Precision Instruments
Medical device manufacturing requires bearings that operate quietly, smoothly, and reliably in sterile environments. Hybrid ceramic bearings meet these requirements while offering extended service life that reduces maintenance requirements in critical medical equipment.
High-speed centrifuges, imaging equipment, and surgical instruments utilize ceramic bearing technology to achieve the precision and reliability demanded in medical applications. The non-contaminating properties of ceramic materials ensure compatibility with sterile operating requirements.
Dental handpieces and other high-speed medical tools benefit from the reduced vibration and noise characteristics of hybrid ceramic bearings, improving both practitioner comfort and patient experience during medical procedures.
Technical Performance Characteristics
Speed and Temperature Capabilities
Hybrid ceramic bearings demonstrate exceptional speed performance capabilities that significantly exceed those of conventional steel bearings. The reduced density of ceramic balls minimizes centrifugal loading effects, enabling operation at speeds up to 50% higher than steel ball bearings. This speed advantage results from the fundamental physics of rotating masses, where lighter ceramic balls generate proportionally less centrifugal force at high rotational speeds.
Temperature performance represents another critical advantage of ceramic bearing technology. Silicon nitride ceramic balls maintain their strength and hardness up to 1,800°F (approximately 980°C), far exceeding the temperature limitations of steel bearings. This thermal stability enables operation in high-temperature applications including turbomachinery, furnace equipment, and aerospace applications where conventional bearings would experience rapid degradation.
The combination of high-speed and high-temperature capabilities makes hybrid ceramic bearings particularly valuable in gas turbine applications, where both operational parameters reach extreme levels simultaneously. The ability to maintain stable performance under these conditions translates directly into improved equipment reliability and extended maintenance intervals.
Load Capacity and Distribution
Despite the lighter weight of ceramic balls, hybrid ceramic bearings maintain excellent load-carrying capabilities through optimized design and material properties. The higher modulus of elasticity of ceramic materials provides improved bearing rigidity, enabling more uniform load distribution across all rolling elements. This enhanced load distribution reduces localized stress concentrations that can lead to premature bearing failure.
The combination of ceramic balls with steel races creates an optimal balance between load capacity and performance characteristics. While full ceramic bearings may have limitations in heavy-load applications due to material brittleness, hybrid designs leverage the strength of steel races to handle substantial loads while benefiting from the performance advantages of ceramic rolling elements.
Dynamic load ratings for hybrid ceramic bearings often match or exceed those of comparable steel bearings, while offering significantly improved performance under combined loading conditions. The ability to handle both radial and axial loads effectively makes these bearings suitable for complex loading scenarios common in industrial applications.
Lubrication Requirements and Compatibility
One of the significant advantages of hybrid ceramic bearings is their reduced lubrication requirements compared to steel bearings. The smooth surface finish and low adhesive wear characteristics of ceramic balls enable operation with minimal lubrication, extending relubrication intervals and reducing maintenance requirements.
The tribochemically inert properties of ceramic materials result in improved lubricant life, as ceramic balls do not promote lubricant degradation through catalytic reactions that commonly occur with steel components. This characteristic enables the use of synthetic lubricants for extended periods without performance degradation.
In some applications, hybrid ceramic bearings can operate under boundary lubrication conditions or even dry running scenarios where steel bearings would fail rapidly. This capability makes them suitable for applications where conventional lubrication methods are impractical or impossible.
Electrical Insulation Properties
The electrical insulation characteristics of ceramic materials provide significant advantages in applications involving electrical equipment or where stray electrical currents may be present. Silicon nitride ceramic balls offer excellent electrical insulation, preventing electrical discharge damage that commonly affects steel bearings in motor applications.
This insulation capability is particularly valuable in electric motor applications controlled by variable frequency drives, where electrical arcing can cause pitting and premature bearing failure. Hybrid ceramic bearings eliminate this failure mechanism, extending bearing life and improving system reliability.
The non-conductive properties also make hybrid ceramic bearings suitable for applications in electromagnetic environments where maintaining electrical isolation is critical for system performance.
Comparative Analysis: Ceramic vs. Steel Performance
Friction and Energy Efficiency
Hybrid ceramic bearings demonstrate substantial friction reduction compared to traditional steel bearings, with ceramic balls generating up to 75% less friction under equivalent operating conditions. This dramatic reduction stems from the superior surface finish achievable with ceramic materials and their inherently low coefficient of friction. The smooth, non-porous surface of ceramic balls creates minimal contact area with steel races, significantly reducing rolling resistance.
Energy efficiency improvements translate directly into operational cost savings across various applications. In electric motor applications, reduced bearing friction can improve overall system efficiency by 2-5%, which represents substantial energy savings over extended operating periods. Industrial studies indicate that hybrid ceramic bearings operating at high speeds generate approximately 10-15% less heat than comparable steel bearings, enabling higher operational speeds without thermal limitations.
The tribological advantages extend beyond simple friction reduction. Ceramic balls exhibit minimal adhesive wear characteristics, eliminating the microscopic cold welding that occurs between steel surfaces even under normal lubrication conditions. This absence of adhesive wear mechanisms contributes to the extended service life and consistent performance characteristics of hybrid ceramic bearings.
Durability and Service Life
Service life comparisons demonstrate the exceptional durability advantages of hybrid ceramic bearing technology. Under identical operating conditions, hybrid ceramic bearings typically provide three to five times longer operational life than steel bearings. In harsh environmental conditions involving contamination or poor lubrication, this advantage can extend to ten times longer service life.
The superior hardness of ceramic balls, approximately three to five times greater than steel, enables them to resist deformation under high contact stresses. This hardness advantage prevents the microscopic surface damage that accumulates over time in steel bearings, contributing to the extended fatigue life of ceramic bearing systems.
Wear resistance testing demonstrates that ceramic balls maintain their original surface finish and dimensional accuracy significantly longer than steel balls. The combination of hardness and chemical inertness provides resistance to both mechanical and chemical degradation mechanisms that limit the life of conventional bearings.
Environmental Performance Factors
Hybrid ceramic bearings excel in challenging environmental conditions where conventional bearings experience rapid degradation. Ceramic materials demonstrate exceptional corrosion resistance, withstanding exposure to acids, alkalis, and aggressive chemicals that would rapidly attack steel bearings. This corrosion resistance enables operation in marine environments, chemical processing facilities, and other corrosive applications.
Temperature stability represents another significant environmental advantage. While steel bearings experience reduced hardness and altered metallurgy at elevated temperatures, ceramic balls maintain their mechanical properties across wide temperature ranges. This stability enables reliable operation in applications involving temperature cycling or sustained high-temperature exposure.
Contamination tolerance of ceramic bearings exceeds that of steel bearings due to the hardness and chemical inertness of ceramic materials. Abrasive particles that would embed in steel surfaces and cause progressive wear have minimal effect on ceramic balls, enabling continued operation in dusty or contaminated environments.
Cost-Benefit Analysis
While hybrid ceramic bearings typically require higher initial investment compared to steel bearings, total cost of ownership analysis frequently demonstrates favorable economics. The extended service life reduces replacement frequency, minimizing both component costs and labor expenses associated with bearing changes.
Reduced maintenance requirements contribute significantly to operational cost savings. Extended lubrication intervals, reduced inspection frequency, and elimination of premature failures combine to reduce maintenance costs by 30-50% in typical industrial applications. These savings often offset the higher initial bearing cost within 12-18 months of operation.
Energy savings from reduced friction provide ongoing operational benefits throughout the bearing service life. In high-speed or continuous operation applications, annual energy cost reductions can represent 5-10% of the initial bearing cost, creating substantial long-term value.
Manufacturing Innovations and Quality Standards
Advanced Materials and Processing Techniques
The production of hybrid ceramic ball bearings involves sophisticated materials science and precision manufacturing processes that ensure consistent quality and performance. Silicon nitride ceramic balls undergo gas pressure sintering at temperatures exceeding 1,700°C under carefully controlled atmospheric conditions to achieve optimal density and microstructure. This process eliminates porosity and creates the fine-grain structure necessary for high strength and fracture toughness.
Advanced ceramic processing techniques include hot isostatic pressing (HIP) which applies simultaneous high temperature and pressure to achieve near-theoretical density and eliminate internal defects. These processing methods create ceramic balls with superior mechanical properties including high strength, excellent wear resistance, and consistent dimensional stability across temperature variations.
Quality control throughout the manufacturing process employs precision measurement systems including coordinate measuring machines and laser interferometry to verify dimensional accuracy within micrometers. Surface finish specifications require specialized polishing techniques to achieve the mirror-like surface quality necessary for optimal bearing performance.
Artificial Intelligence in Manufacturing
Modern hybrid ceramic bearing manufacturing increasingly incorporates artificial intelligence technologies to enhance precision, reduce variability, and optimize production efficiency. AI-powered systems monitor manufacturing parameters in real-time, detecting deviations that could affect bearing quality before defective products are produced.
Machine learning algorithms analyze production data to identify optimal processing parameters for different specifications and operating conditions. These systems continuously improve manufacturing consistency by learning from production outcomes and adjusting parameters to minimize variation.
Predictive quality control systems utilize AI to identify potential quality issues based on sensor data from manufacturing equipment. This proactive approach prevents production of defective bearings and reduces waste while maintaining consistent quality standards.
Industry Standards and Certifications
Hybrid ceramic bearings must meet stringent industry standards that ensure consistent performance and reliability across different manufacturers. International standards including ABMA (American Bearing Manufacturers Association) and ISO specifications define dimensional tolerances, surface finish requirements, and performance characteristics.
Grade classifications for ceramic balls follow established standards with Grade 3 representing high precision suitable for most industrial applications, while Grade 1 provides ultra-precision for demanding applications requiring exceptional accuracy. These standardized grades ensure interchangeability and predictable performance characteristics across different suppliers.
Certification processes include comprehensive testing protocols that verify performance characteristics under standardized conditions. Testing includes dimensional verification, surface finish measurement, hardness testing, and operational performance evaluation under simulated service conditions.
Quality Assurance and Testing Protocols
Comprehensive quality assurance programs for hybrid ceramic bearings incorporate multiple inspection stages throughout the manufacturing process. Incoming material inspection verifies ceramic ball specifications including dimensional accuracy, surface finish, and material composition through chemical analysis and mechanical testing.
Assembly quality control includes precision measurement of bearing clearances, raceway roundness, and overall dimensional accuracy. Operational testing under controlled conditions verifies friction torque, noise levels, and vibration characteristics to ensure bearings meet performance specifications.
Final inspection protocols include comprehensive performance testing under simulated operating conditions. This testing verifies speed capability, load capacity, and temperature performance to ensure each bearing meets specification requirements before shipment.
Future Developments and Market Trends
Emerging Technologies and Applications
The hybrid ceramic bearing industry continues to evolve with emerging technologies that expand application possibilities and improve performance characteristics. Additive manufacturing techniques, including 3D printing, are being developed for ceramic component production, potentially enabling more complex geometries and customized bearing designs.
Smart bearing technology represents a significant development trend, incorporating sensors and monitoring systems directly into bearing assemblies. These intelligent bearings provide real-time data on temperature, vibration, and loading conditions, enabling predictive maintenance strategies that optimize equipment uptime.
Advanced coating technologies are being developed to further enhance bearing performance. Diamond-like carbon (DLC) coatings and specialized ceramic coatings provide additional wear resistance and reduced friction, extending the performance advantages of hybrid ceramic bearings.
Market Growth and Industry Adoption
The global hybrid ceramic bearing market demonstrates strong growth trends, with projections indicating expansion from $360 million in 2025 to $510 million by 2034, representing a compound annual growth rate of 3.84%. This growth is driven by increasing adoption in electric vehicle applications, renewable energy systems, and high-performance industrial machinery.
Electric vehicle market expansion represents a primary growth driver, with hybrid ceramic bearings providing essential performance advantages for high-speed electric motors. The automotive sector accounts for approximately 58% of demand growth for lightweight, durable bearing solutions.
Aerospace applications continue to drive demand for high-performance bearings capable of operating under extreme conditions. Aerospace-grade hybrid bearings represent approximately 36% of new product development efforts, focusing on enhanced temperature resistance and vibration tolerance.
Sustainability and Environmental Impact
Hybrid ceramic bearings contribute to sustainability objectives through multiple mechanisms including energy efficiency improvements, extended service life, and reduced maintenance requirements. The enhanced energy efficiency of ceramic bearings reduces power consumption in motor applications, contributing to overall energy conservation efforts.
Extended service life reduces bearing replacement frequency, minimizing material consumption and waste generation. The durability of ceramic materials enables bearings to operate effectively for extended periods, reducing the environmental impact associated with frequent component replacement.
Reduced lubrication requirements of hybrid ceramic bearings minimize lubricant consumption and disposal, contributing to environmental protection objectives. The ability to operate with minimal lubrication or synthetic lubricants reduces the environmental impact of bearing maintenance activities.
Lubrication Strategies and Intervals
Hybrid ceramic bearings benefit from optimized lubrication strategies that take advantage of their reduced lubrication requirements compared to steel bearings. The smooth surface finish and chemical inertness of ceramic balls enable extended lubrication intervals, often 2-3 times longer than steel bearings under equivalent conditions.
Lubricant selection should consider the enhanced temperature stability and reduced friction characteristics of ceramic bearings. Synthetic lubricants often provide optimal performance due to their thermal stability and compatibility with extended service intervals.
Relubrication procedures can be less frequent due to the improved lubricant life achieved with ceramic balls. However, monitoring systems should verify lubricant condition and bearing temperature to ensure optimal lubrication is maintained throughout the service interval.
Monitoring and Diagnostic Techniques
Condition monitoring of hybrid ceramic bearings benefits from their consistent performance characteristics and predictable degradation patterns. Vibration analysis provides excellent diagnostic capability, with ceramic bearings typically exhibiting lower baseline vibration levels than steel bearings.
Temperature monitoring is particularly effective for ceramic bearings due to their low heat generation characteristics. Elevated temperatures often indicate lubrication issues or contamination before other symptoms become apparent.
Acoustic monitoring can detect early signs of bearing distress, with ceramic bearings typically operating more quietly than steel bearings. Changes in acoustic signature can indicate developing problems that require attention.
Troubleshooting Common Issues
While hybrid ceramic bearings demonstrate exceptional reliability, understanding potential failure modes enables proactive maintenance and problem resolution. Contamination represents the most common cause of premature failure, particularly in applications where sealing is inadequate.
Improper installation procedures can create stress concentrations that affect bearing life. Misalignment, excessive preload, or contamination during installation can significantly impact performance. Proper installation training and procedures are essential for achieving design life.
Lubrication-related issues, while less common than with steel bearings, can still occur if lubrication intervals are extended beyond recommended limits or if incompatible lubricants are used. Regular lubricant analysis can identify potential issues before bearing damage occurs.
